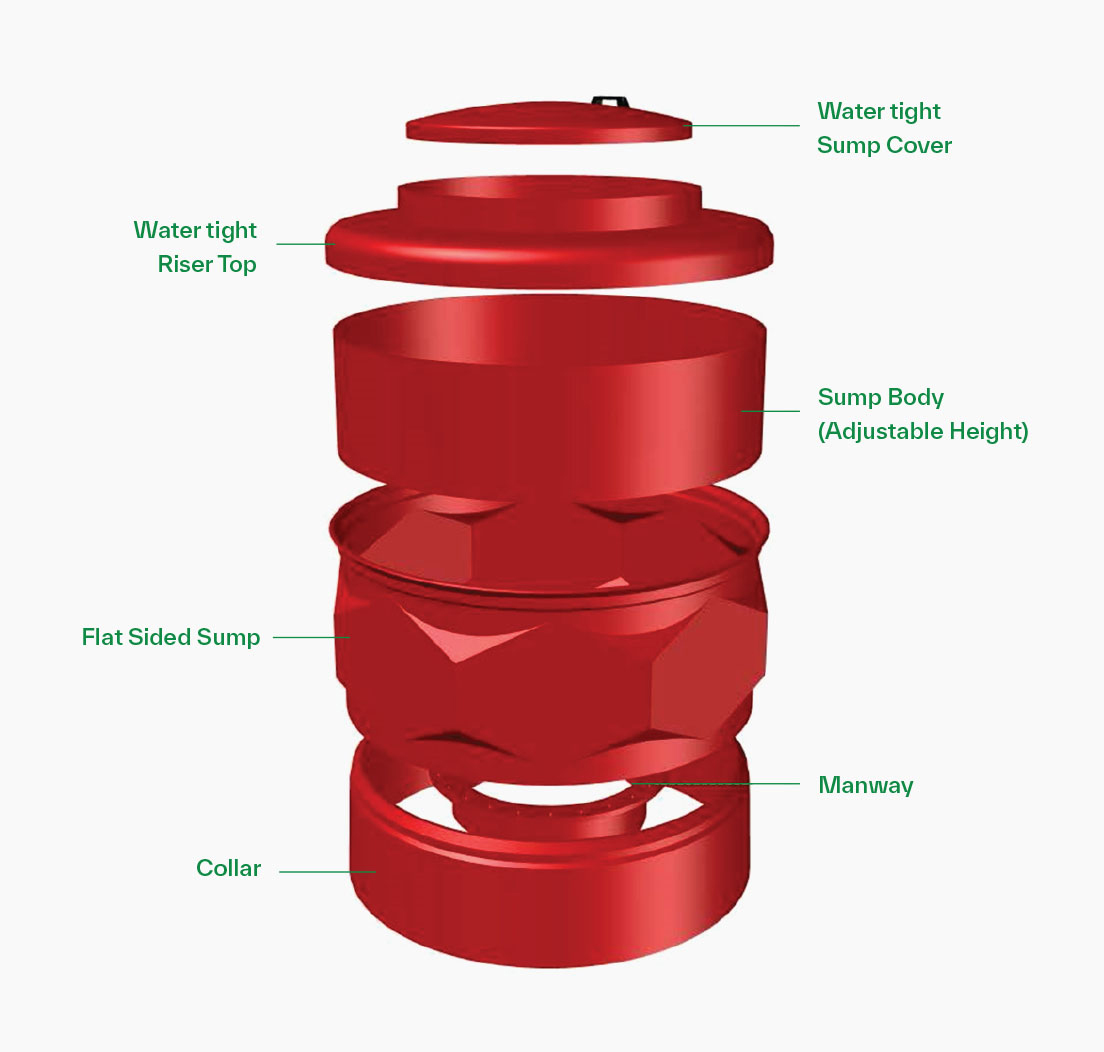

Tank sumps are positioned on top of a fuel tank’s collar to provide key inspection, safety, and containment functions. They allow operators to easily inspect the tank interior for corrosion, sediment, or maintenance needs. Our modern sump design enables simple installation of pipes and seals on a flat-sided surface, eliminating the need for confined space compliance and improving both efficiency and safety.
In case of a fuel leak or spillage from equipment installed on the manway cover, the sump acts as a containment area, preventing fuel from spreading and reducing environmental risk. The watertight sump cover prevents water from entering the tank, protecting the stored fuel.

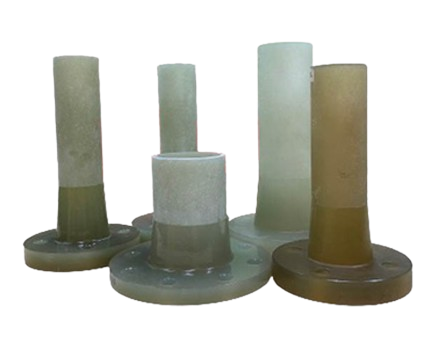

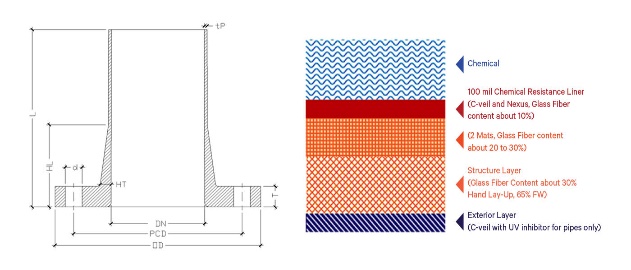

Fiber-reinforced polymer (FRP) flanges or nozzles play a vital role in industrial applications, particularly in the construction of tanks and vessels. These components are strengthened with fibres like fiberglass to enhance their durability and resistance to corrosion. FRP flanges contribute to the longevity of systems that handle liquids, offering a robust solution to prevent leaks and maintain structural integrity.
*To supply equivalent resin system can be available upon request
| Nominal Diameter (DN) | *Flange Thickness pressure min 4 bar (T) |
HT hub Thk | HT Hub Length | *tp body thk | Connection Size | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| **Stub Length (L) | Flange Dia. (OD) | *PCD | (d) hole size | Bold Qty/size | ||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | No | Size / mm |
| 25 | 16 | 8 | 64 | 5 | 280 | 115 | 85 | 14 | 4 | M12 |
| 50 | 16 | 8 | 64 | 5 | 280 | 158 | 114 | 18 | 4 | M16 |
| 75 | 16 | 8 | 64 | 5 | 280 | 185 | 146 | 18 | 4 | M16 |
| 80 | 17 | 9 | 68 | 5 | 280 | 200 | 160 | 18 | 8 | M16 |
| 100 | 17 | 9 | 68 | 5 | 280 | 220 | 180 | 18 | 8 | M16 |
| 150 | 18 | 9 | 72 | 6 | 280 | 285 | 235 | 22 | 8 | M20 |
| 200 | 21 | 11 | 84 | 6 | 280 | 340 | 292 | 22 | 8 | M20 |

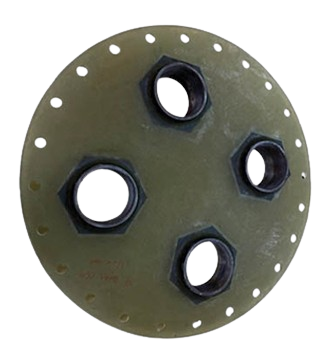

| Name: | Manway cover 4H |
|---|---|
| Specs: | PS 15-69 & ASTM D5421 |
| Application: | Diesel Exhaust Fluid tanks |
| Product code: | M22, M30 |

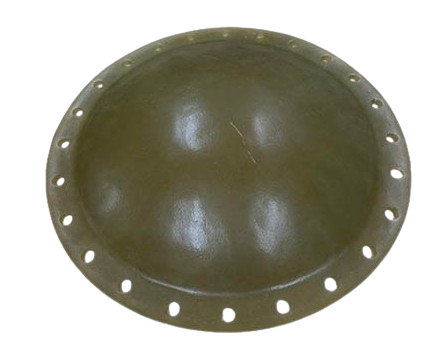

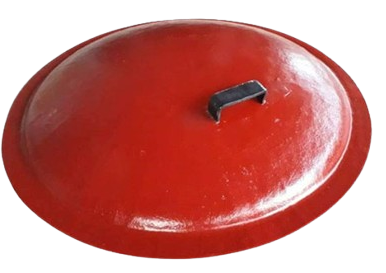

| Name: | Manway cover |
|---|---|
| Specs: | PS 15-69 & ASTM D5421 |
| Application: | Chemical tanks |
| Product code: | M22, M30 |
| Specs: | Ø900mm, Ø300mm |
|---|---|
| Load Capacity: | 40 tons, 25 tons |

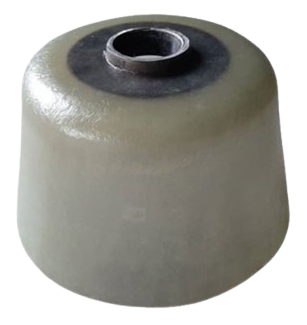

| Product name: | RESERVOIR PR |
|---|---|
| Product code: | R18 |
| Available size: | 18” (INCH) |
| Application: | To monitor any leakage in the interstitial space |

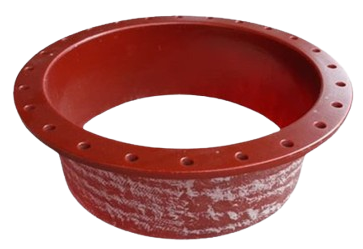

| Product name: | FRP MANWAY |
|---|---|
| Product code: | M22, M30 |
| Available size: | 22”, 30” (INCH) |
| Application: | On top of the tank body located within the collar |

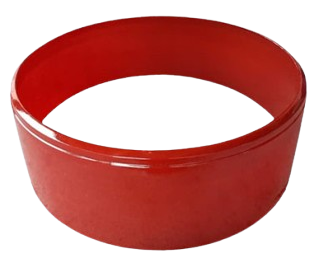

| Product name: | FRP COLLAR |
|---|---|
| Product code: | T42, T48, C1370 & C1500 |
| Available size: | 42”, 48”, 54”, 60” (INCH) |
| Application: | On top of the tank body located around the manway |
| Remarks: | It can be trimmed to fit the tank body cylindrical shape |

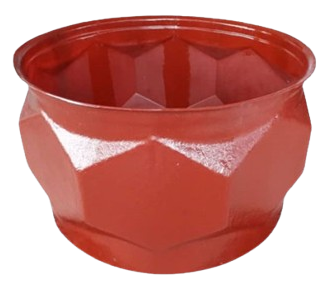

| Product name: | Flat sided sump |
|---|---|
| Product code: | FS42 & FS48 |
| Available size: | 42”, 48” (INCH) |
| Application: | On top of tank collar |

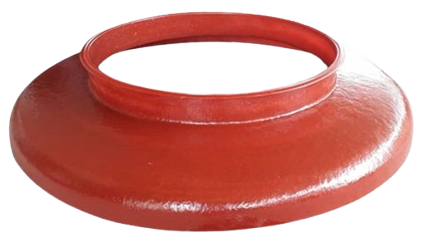

| Product name: | Water tight riser top |
|---|---|
| Product code: | RT42, RT48 |
| Available size: | 42”, 48” (INCH) |
| Application: | between riser and water tight sump cover 30"(S30） |
| Product name: | Water tight sump cover |
|---|---|
| Product code: | S30 |
| Available size: | 30” (INCH) |
| Application: | Prevent any contamination/water entering the tank |
